The Original.

We’re not just another name in the game; we’re the original. When we launched the first full pop-up camper shell on the market, our goal was simple: build the lightest, most spacious, and toughest camper we could. We've grown since those early days, but our original campers are still on the road, being used around the world. Our team pours passion into every camper, using top-quality materials to make sure they’re built to last. Even with more competition out there, people keep coming back to us for our standout quality and the friendly customer service that’s been with us from camper number one.

ABOUT OUR DESIGN

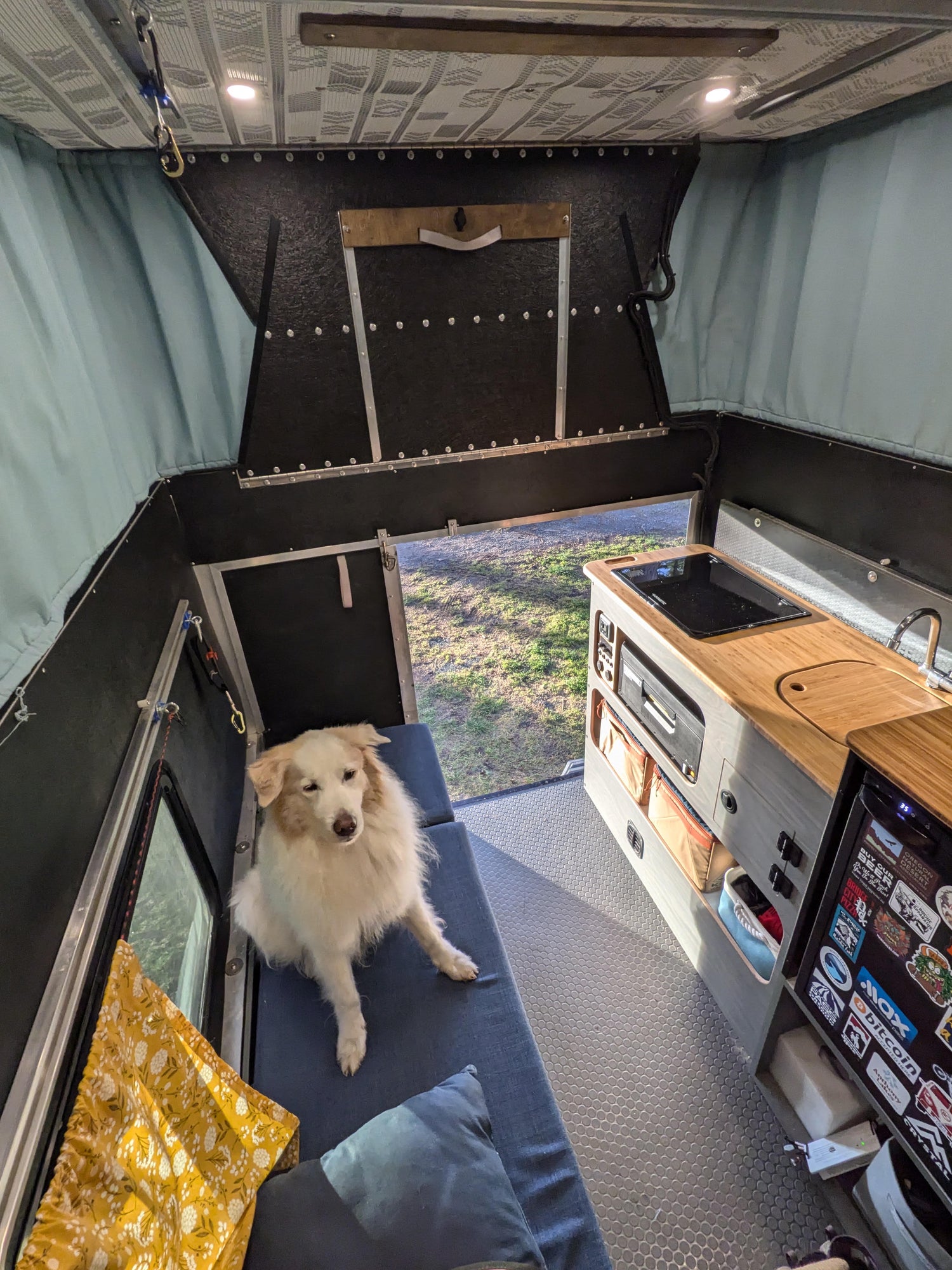

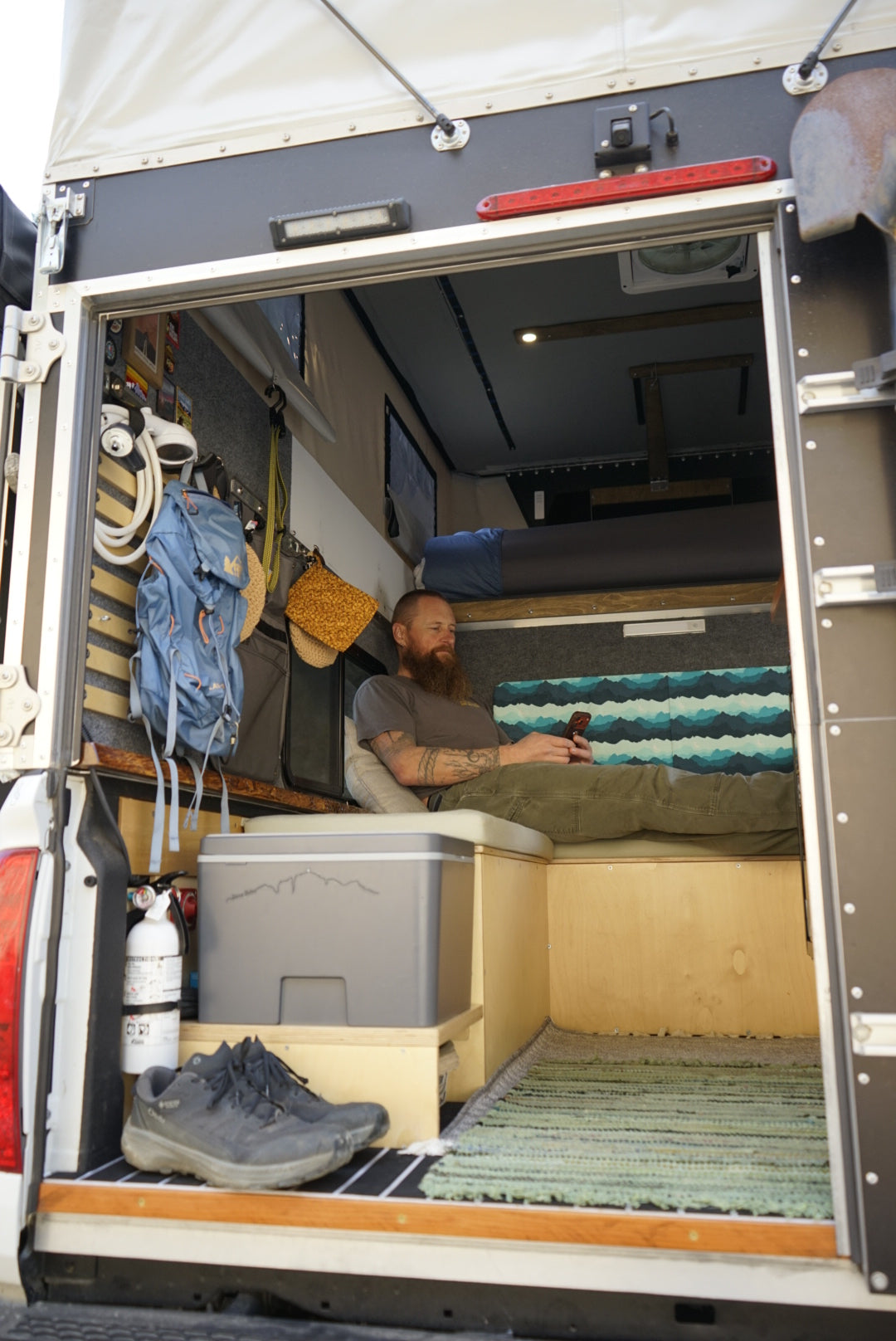

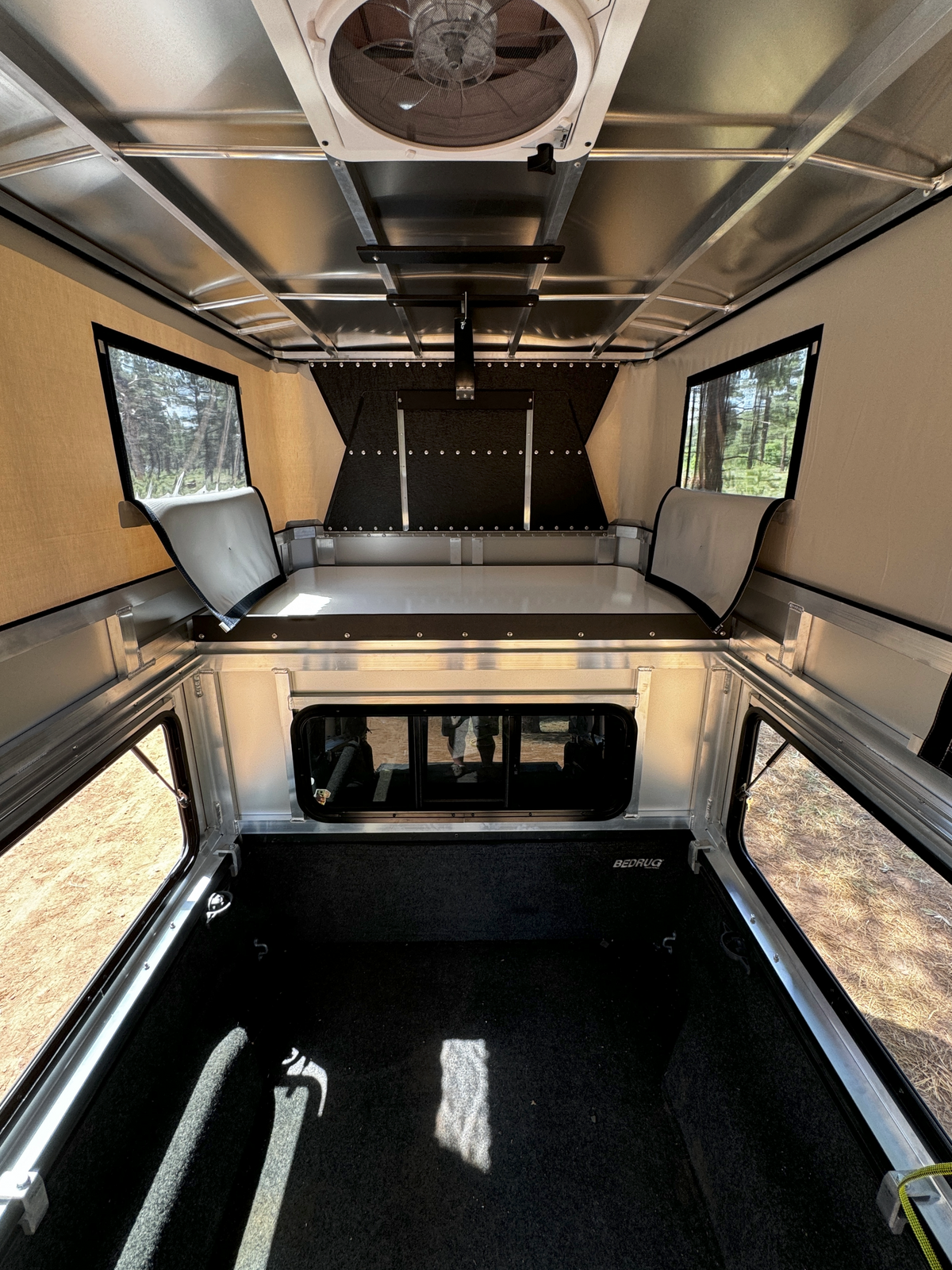

OVRLND Camper interior that customer has built out.

Lightweight. Tight Fit.

Using your truck's bed measurements we are able to build an extremely tight-fitting camper. This approach maximizes space while limiting exposure to low hanging branches on narrow trails.

Our truck campers are the lightest on the market, they can weigh under 265lbs* and are built specifically for your truck, making each camper shell a nimble overland tool that is sure to make any road feel like home. Load your truck with gear without stressing about your payload.

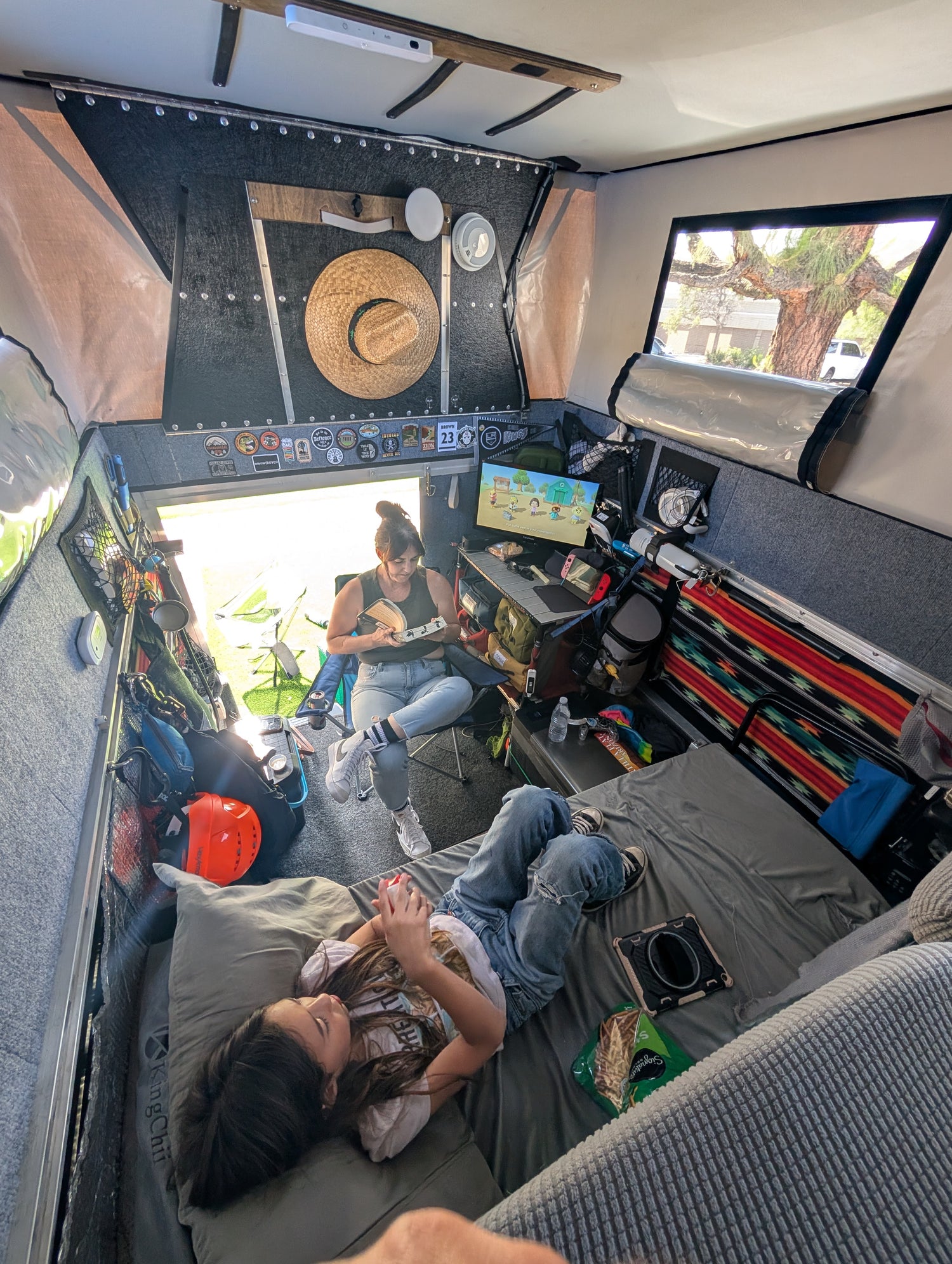

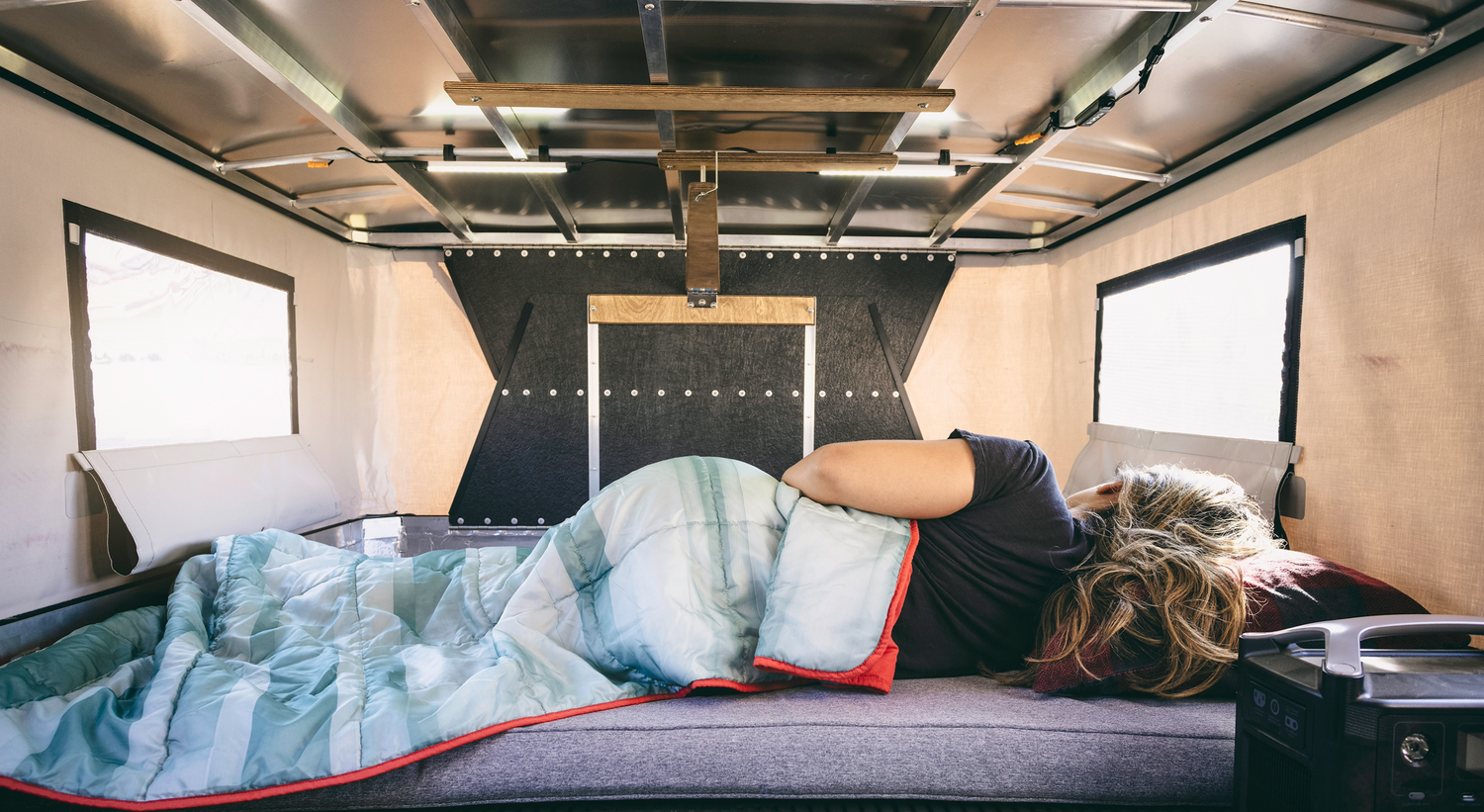

4 people laying in the bed of an OVRLND Pop-Top Camper shell on a Ram 2500

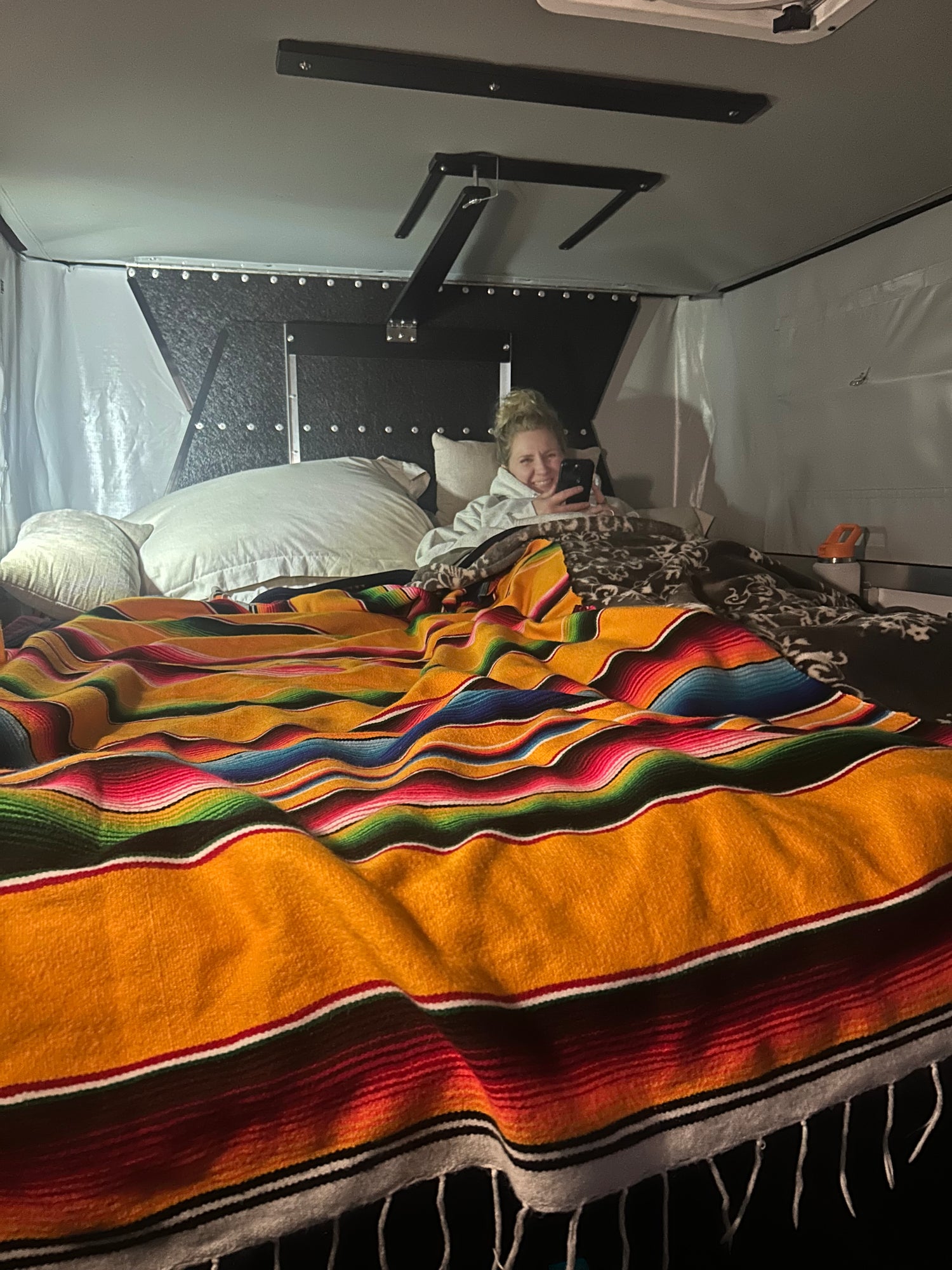

Full Size Queen Slide Out.

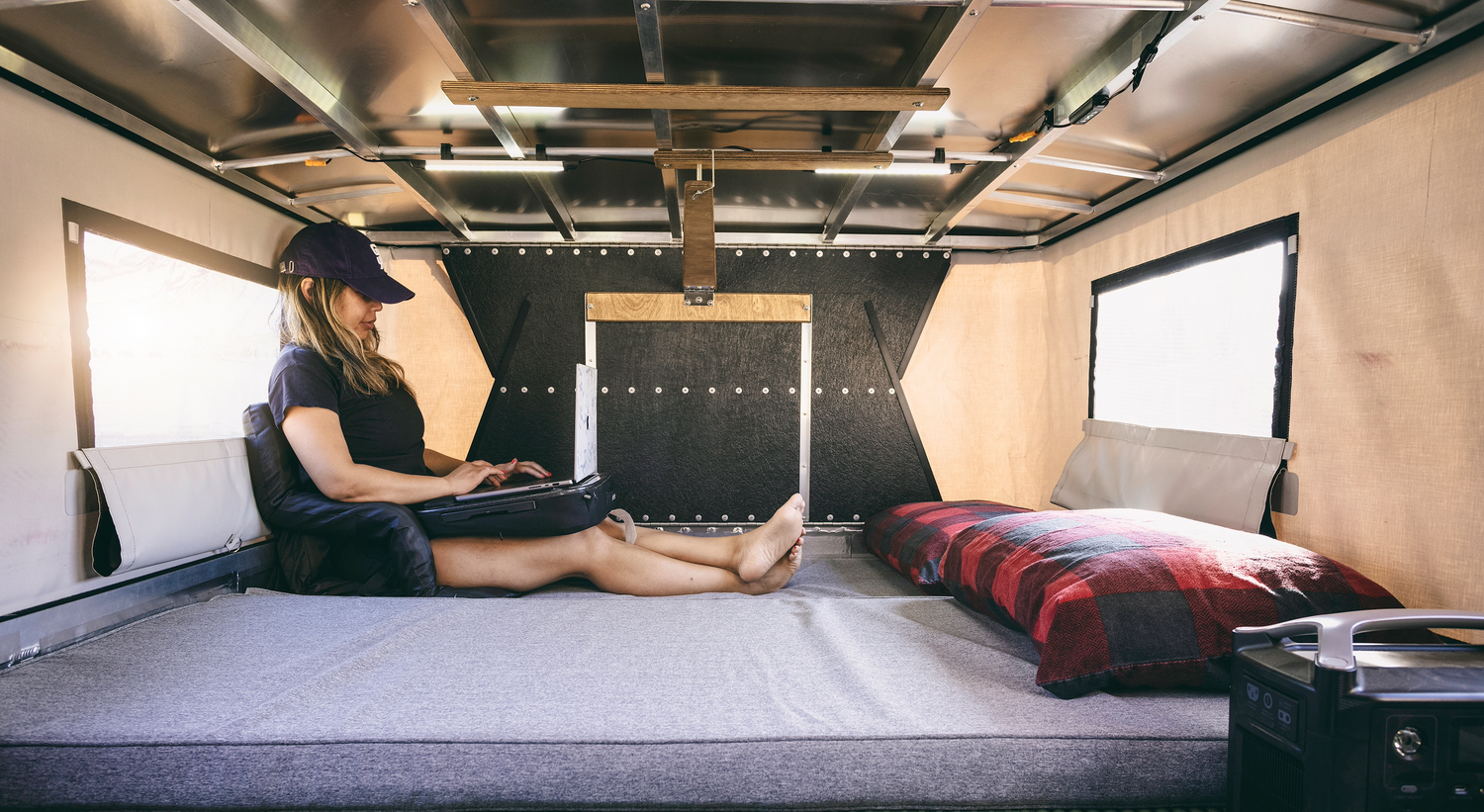

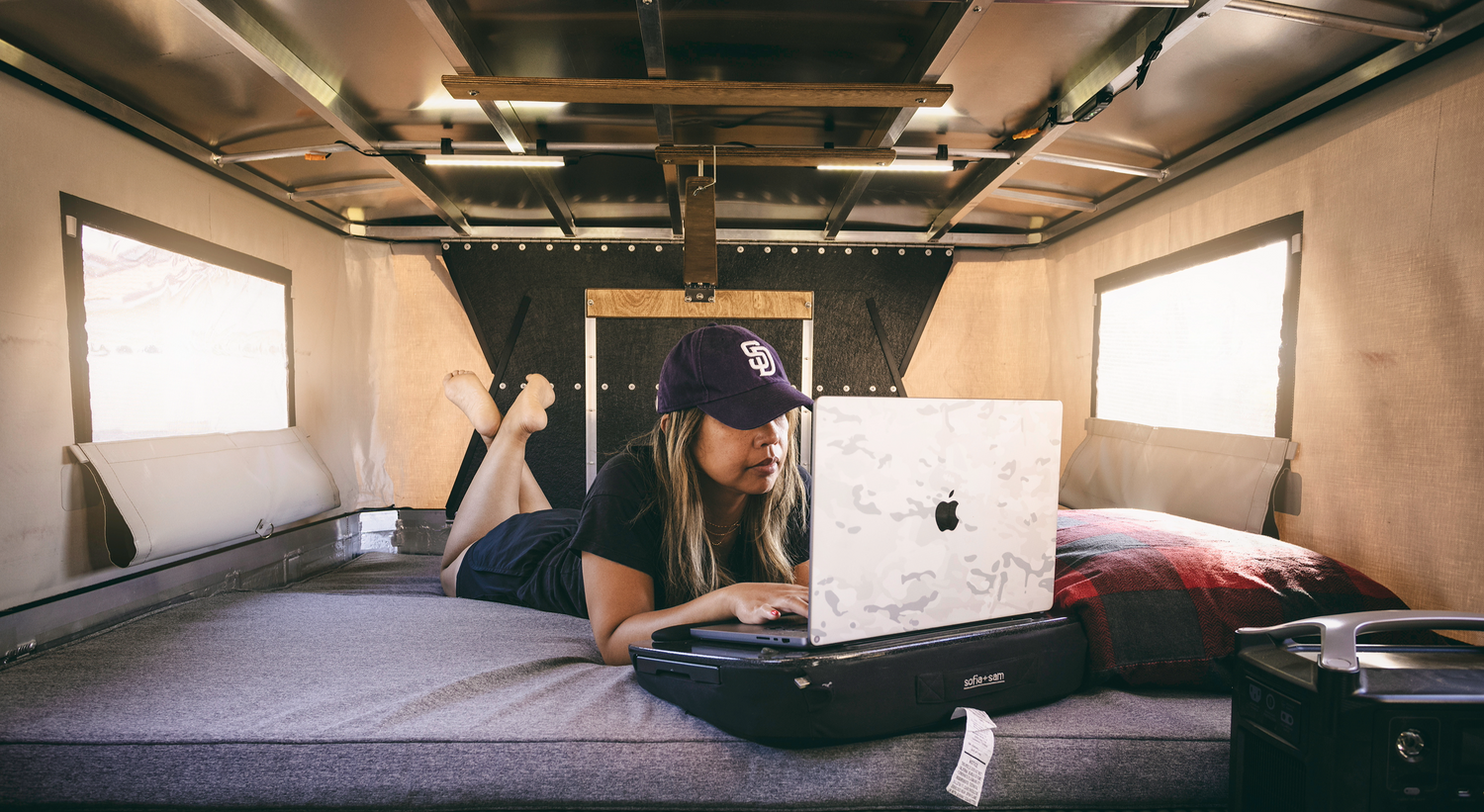

Our pop up campers come standard with a 80" long and 60" wide (minimum) collapsible bed platform. With the bed extended there is always enough room to hop down for the midnight bathroom break without waking your partner. With the bed collapsed, someone can take a cat nap up top on the bed while someone else has room to cook below.

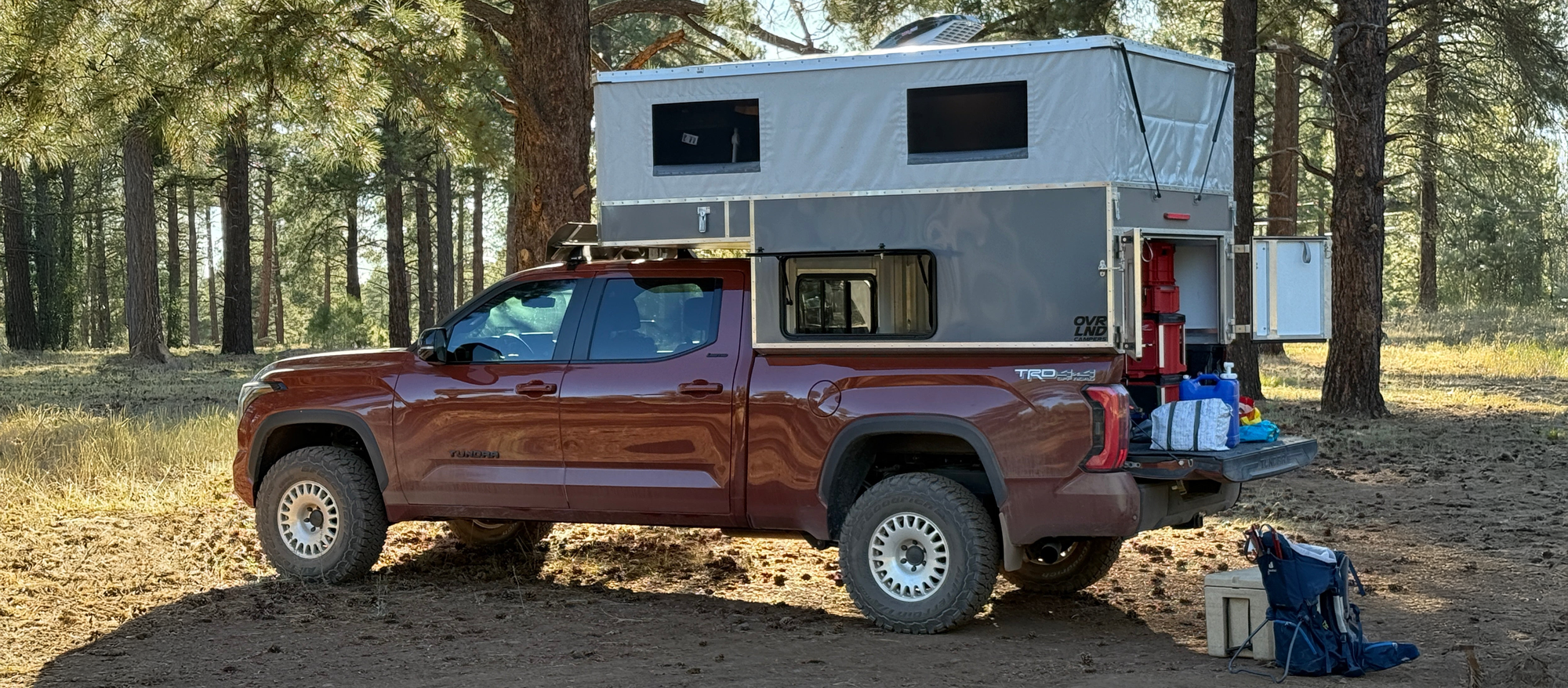

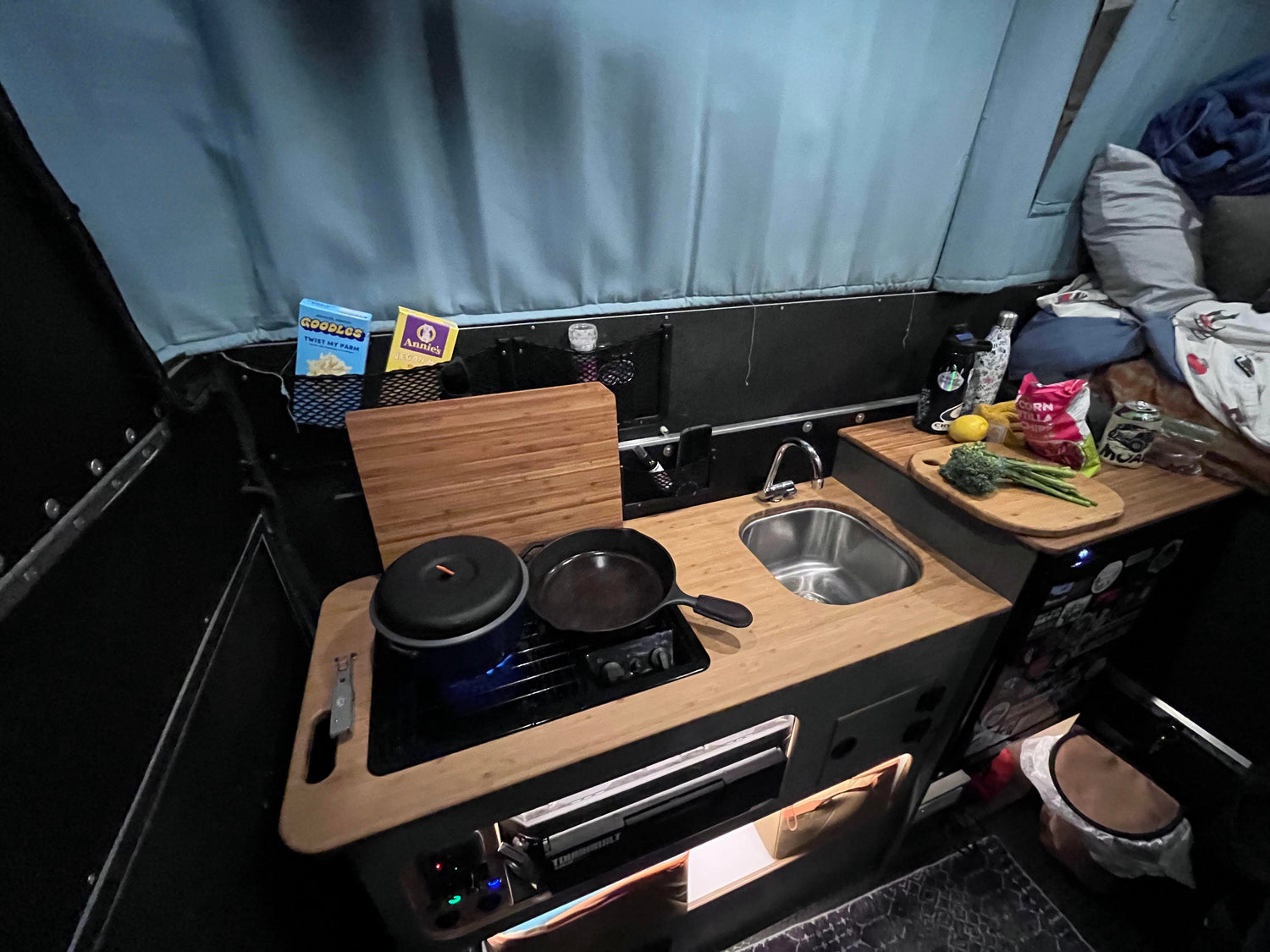

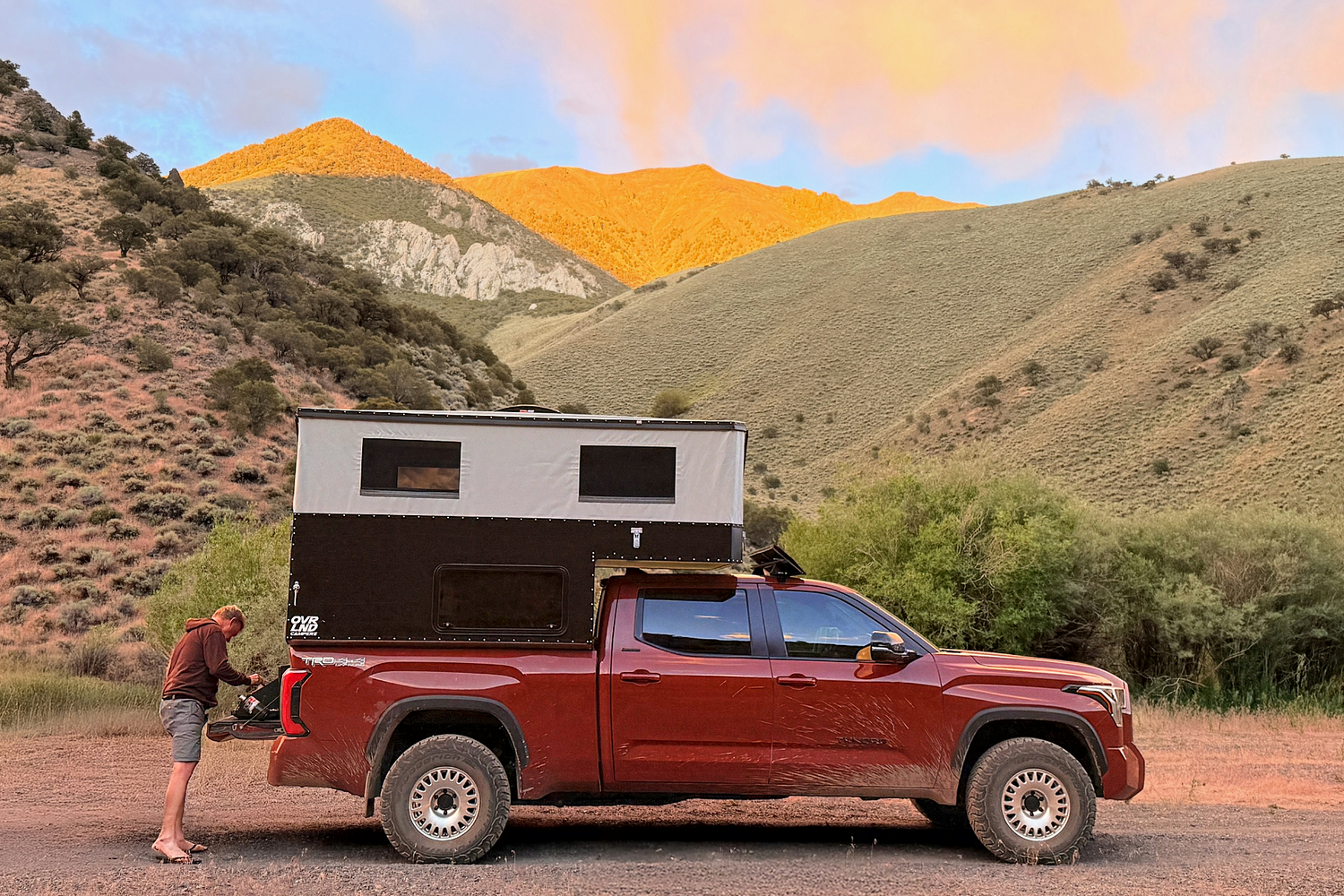

6 people cooking dinner inside their overland camper shell on a Toyota Tundra.

More Room. More Fun.

OVRLND pop up camper shells are huge inside. With a standing height of over 6'5", this camper is made to store all the adventure equipment you have. Keep the fun going and easily have your campsite friends over for a rainy day meal.

With vertical walls and a straight up pop, you gain tons of room over wedge style camper shells, allowing you to maximize your gear storage and sleeping areas.

The campers are built to fit your truck specifically, so there is no wasted space. They clamp straight to the truck's side rails, so they don't take up any valuable
real estate like a slide-in camper.

constructing roof of camper

Constructed For Abuse.

Our camper frames are welded aluminum tubing, with aluminum skins glued to that frame, and aluminum trim pieces glued, riveted and screwed to the skins and frame. The same techniques used on 50+ year old travel trailers, 1,000,000 mile semi trailers, and decades old campers that are still on the road today.

What does this mean?

It means these campers are built to last not just a couple years, but decades while also taking a hit. Not only that, they are repairable with easy to source materials should you need to fix something on the other side of the globe.

We see lots of new products that look prettier and sleeker using "industrial" manufacturing techniques. All this means is it's easier, faster and cheaper for them to build with no guarantee as to how long it will last. Inevitably making it harder for you to source a crucial part should it break or be discontinued.

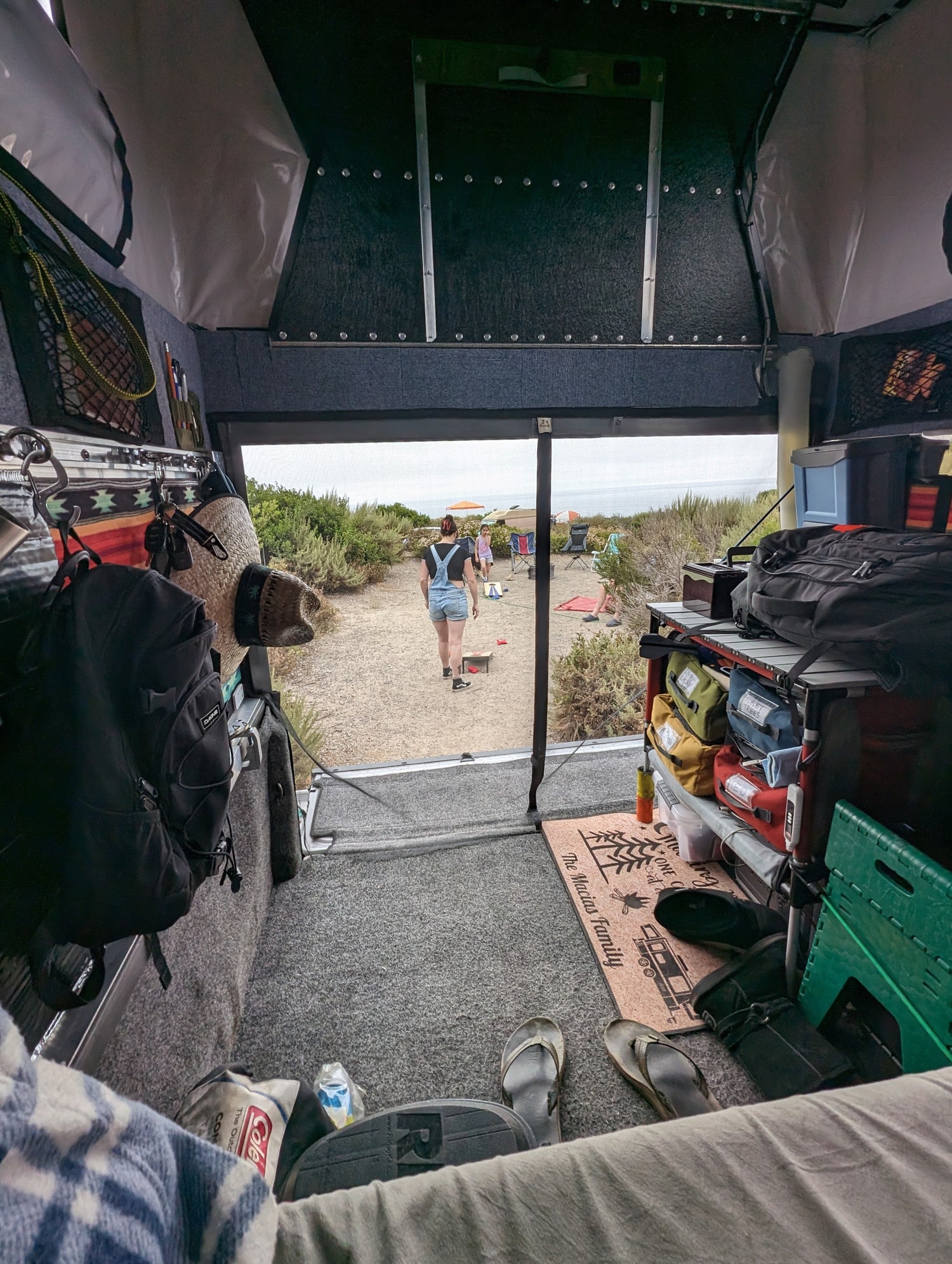

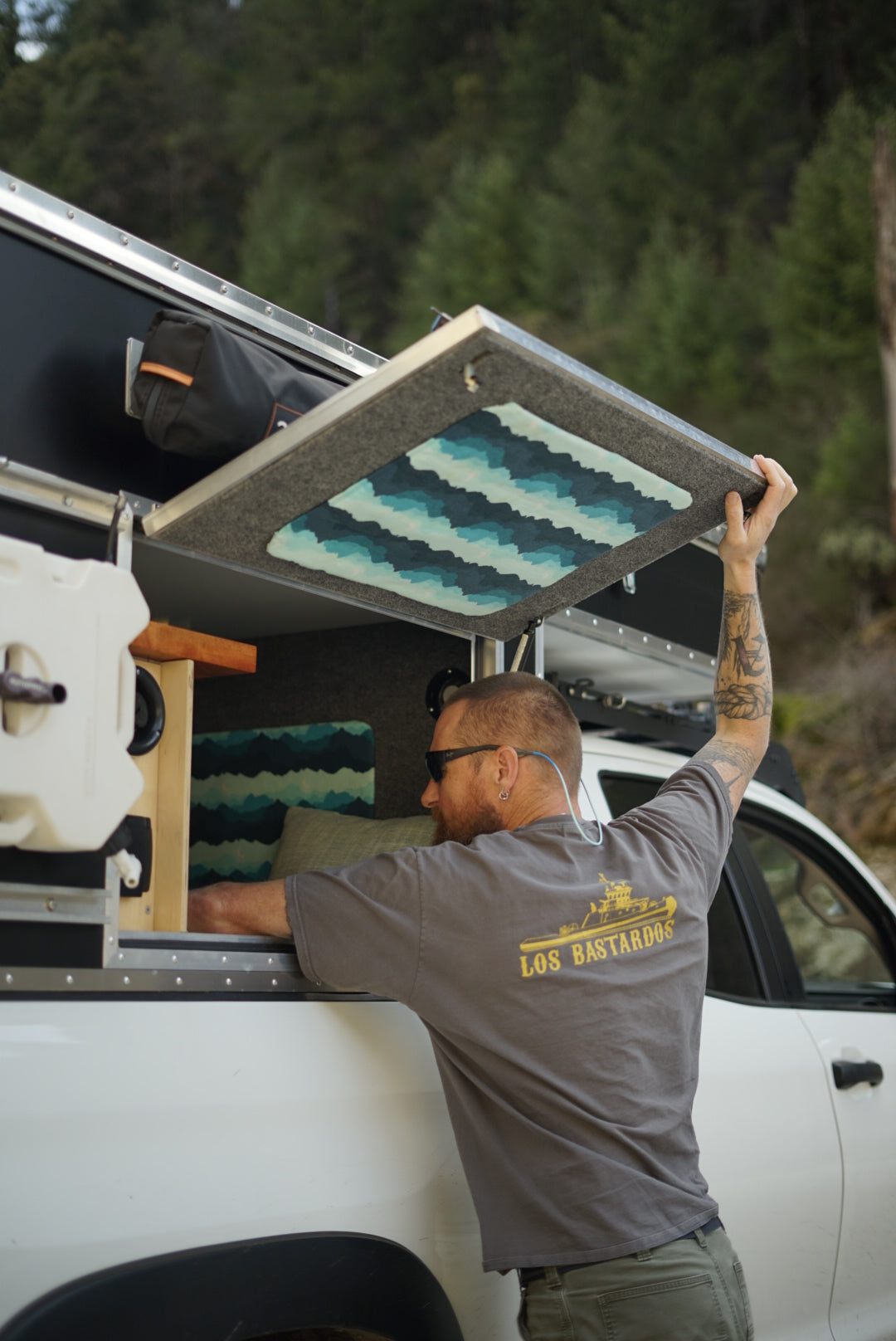

Half Barn Doors.

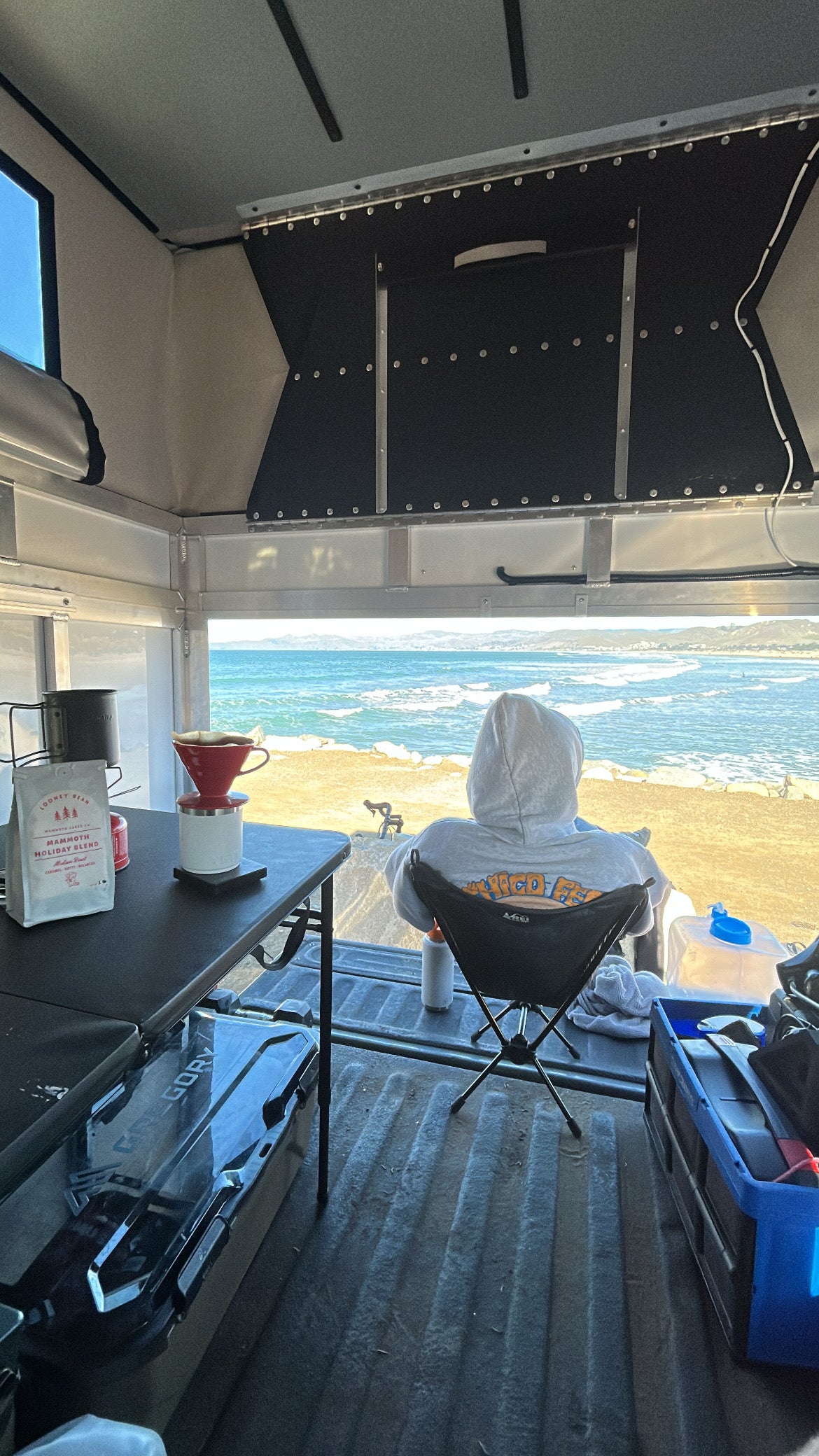

Barn doors make it easy to get in and out of your camper. They offer utility and easy access, and unlike a conventional flip up camper shell door, the 270 swing away barn doors allow you to stand on the tailgate before entering the camper. Full barns doors can be self installed with a kit.

Jeep Gladiator with pop up camper shell in desert landscape.

Windows Anyone?

Unlike other manufacturers, we can place several different kinds and shapes of windows anywhere you want. We have pass-through front windows, large side-slide windows, rear windows, and specialty Arctic Tern windows available in almost any configuration.

Highly modified OVRLND pop-up camper shell on GMC truck. Customer has done a number of modifications for cooking and camping.

Unlimited Modification.

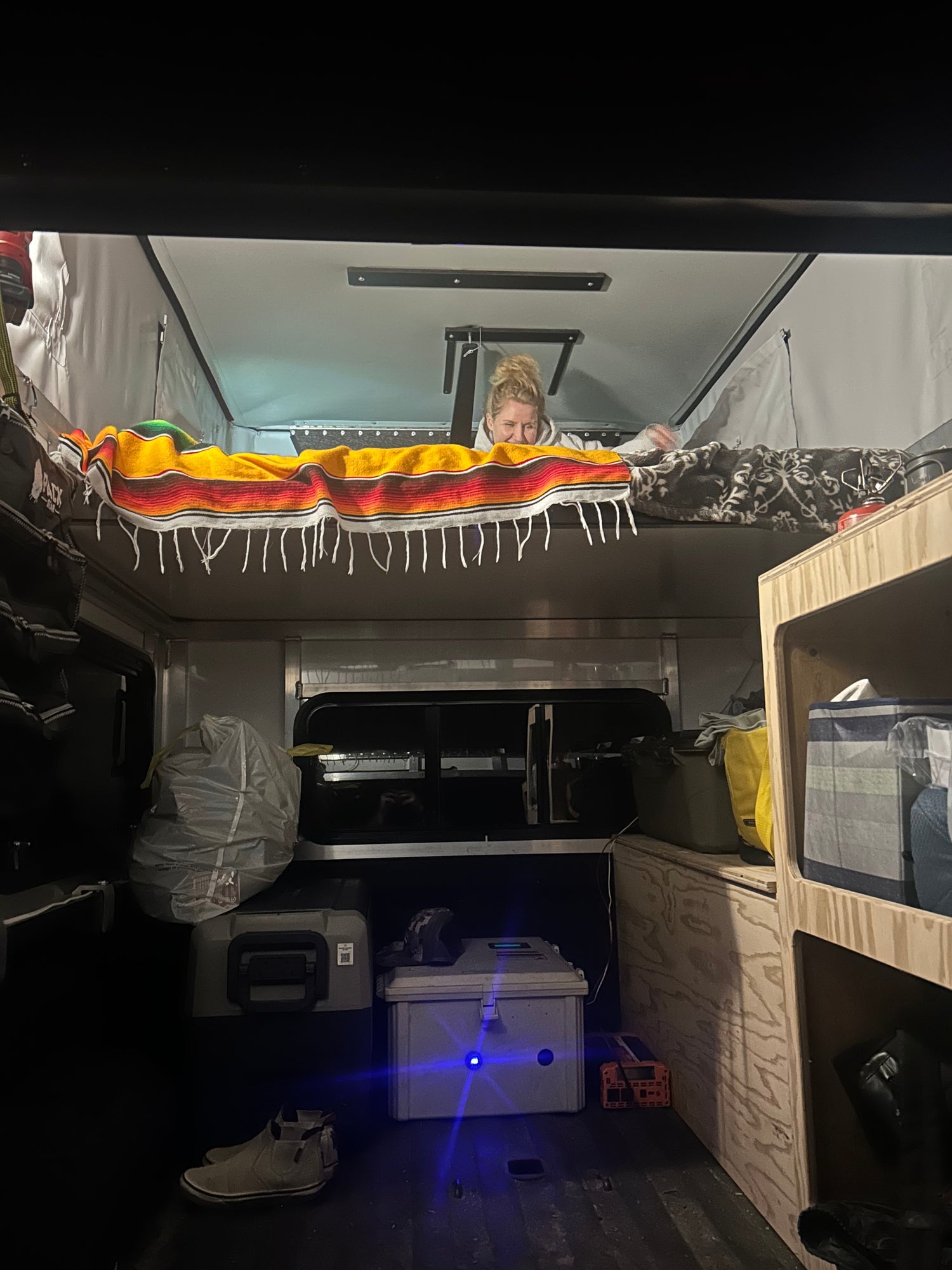

The interiors of OVRLND camper shells are left uncovered giving you infinite room to add anything you want. Vertical walls and a visible frame structure make it easy to mount accessories inside and out. There are side extruded rails mounted inside made specifically to take a bolt, so go ahead, mount anything anywhere.

  • You want to make it a winter camping dream? Add some insulation.

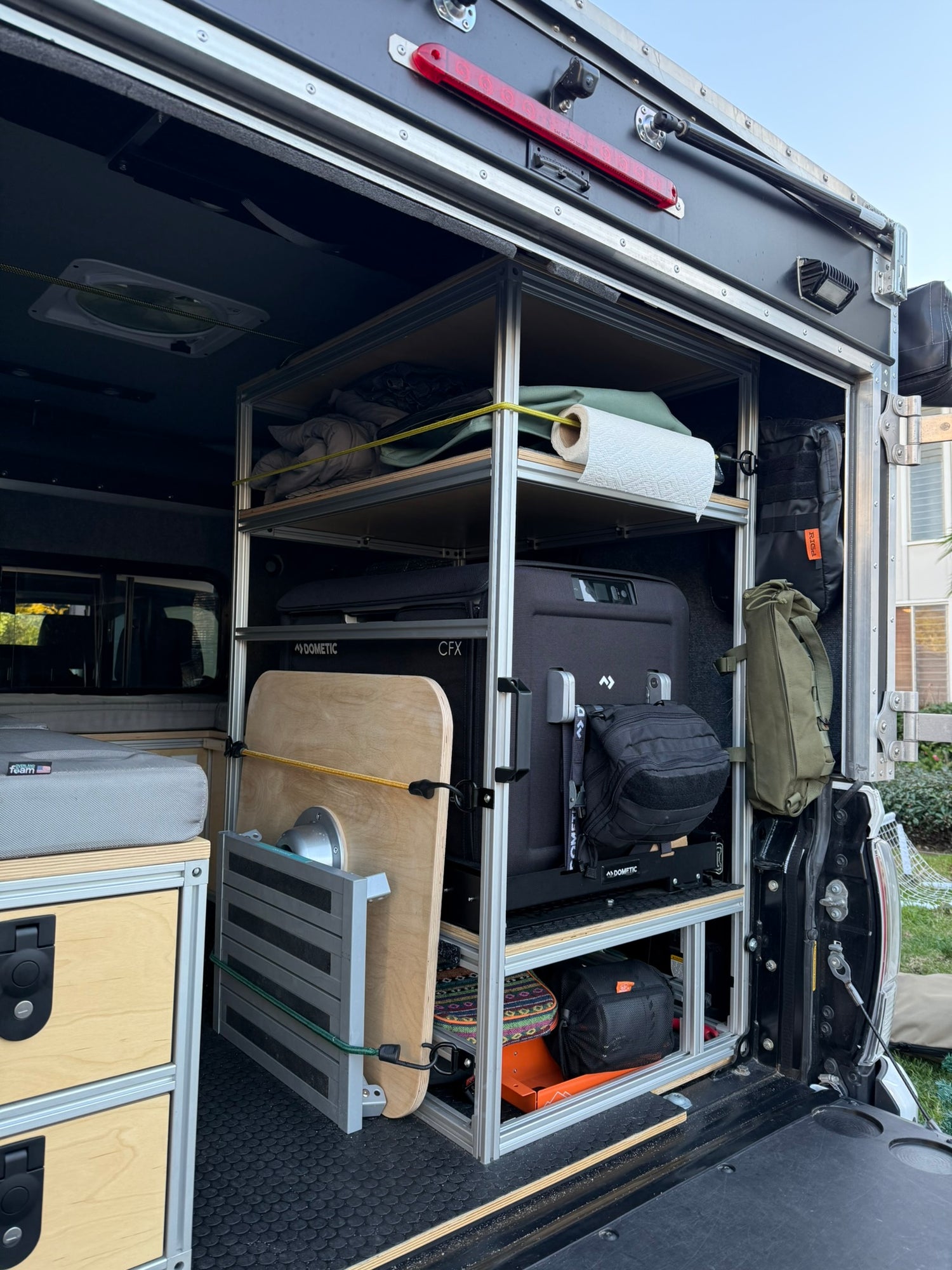

  • Do you want more storage? Add some shelving.
  • Do you want a place to cook? You can easily add a hinge and make a fold down counter top.

Nothing stands in the way of you making the OVRLND pop top camper shell yours.

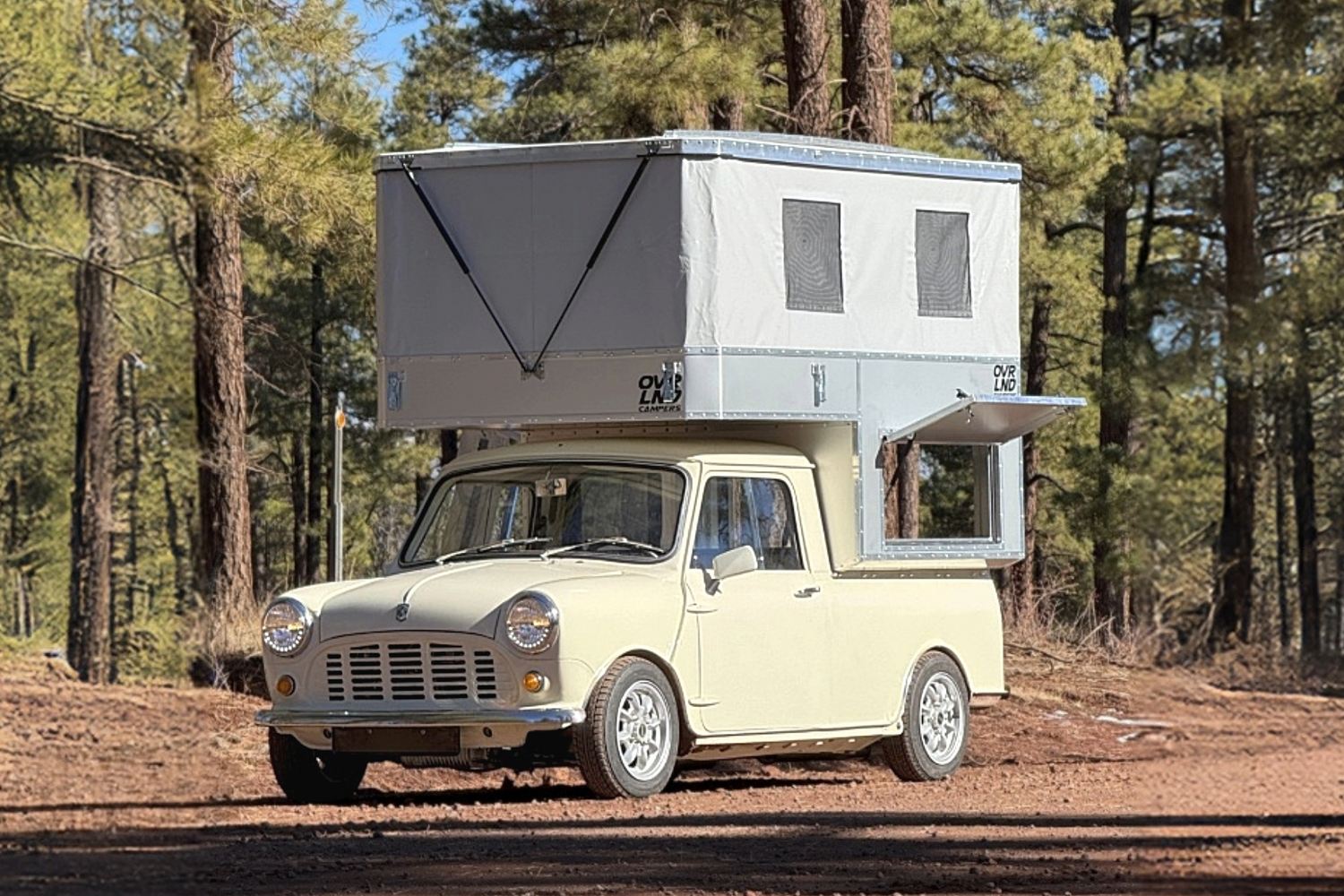

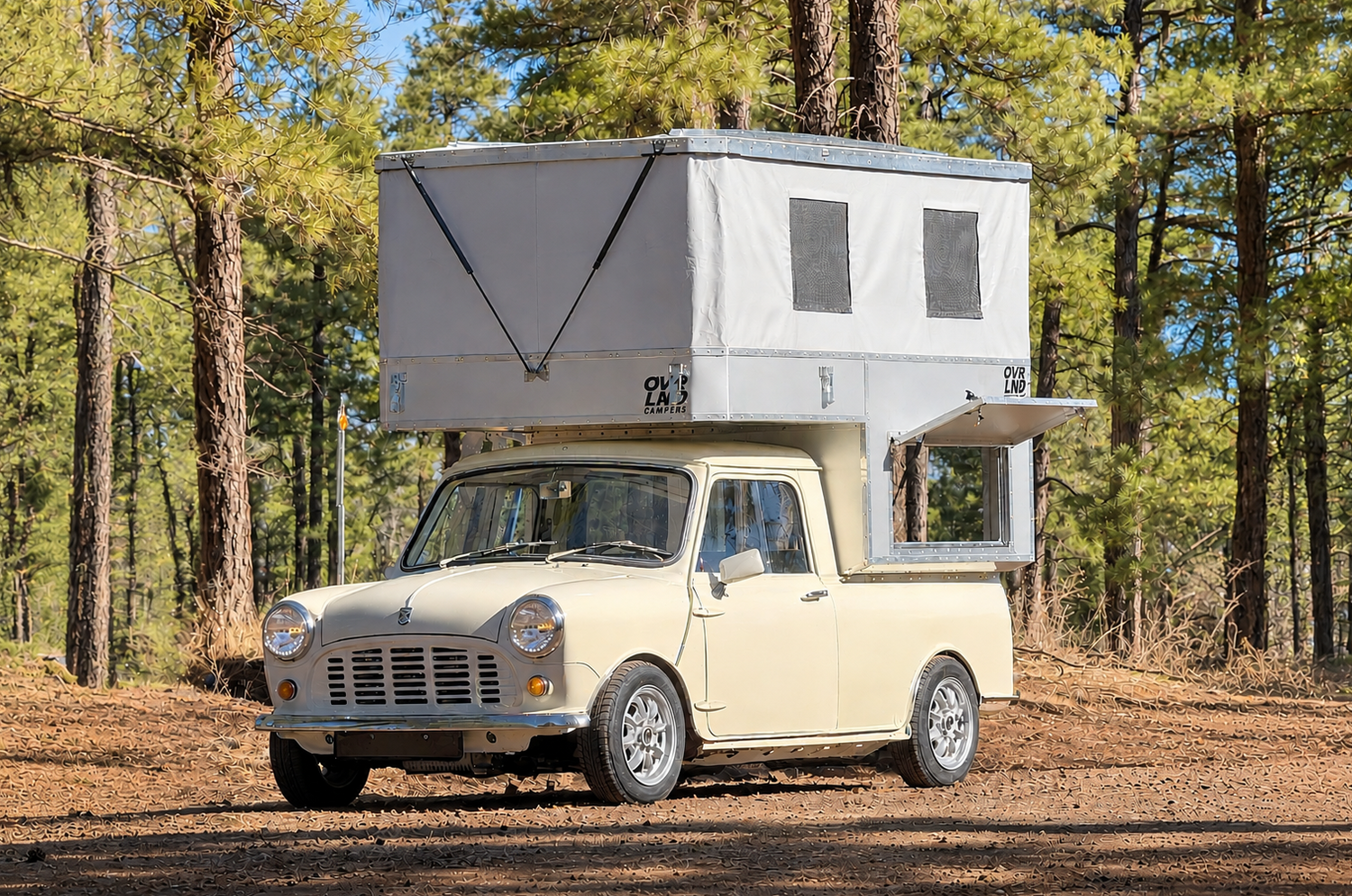

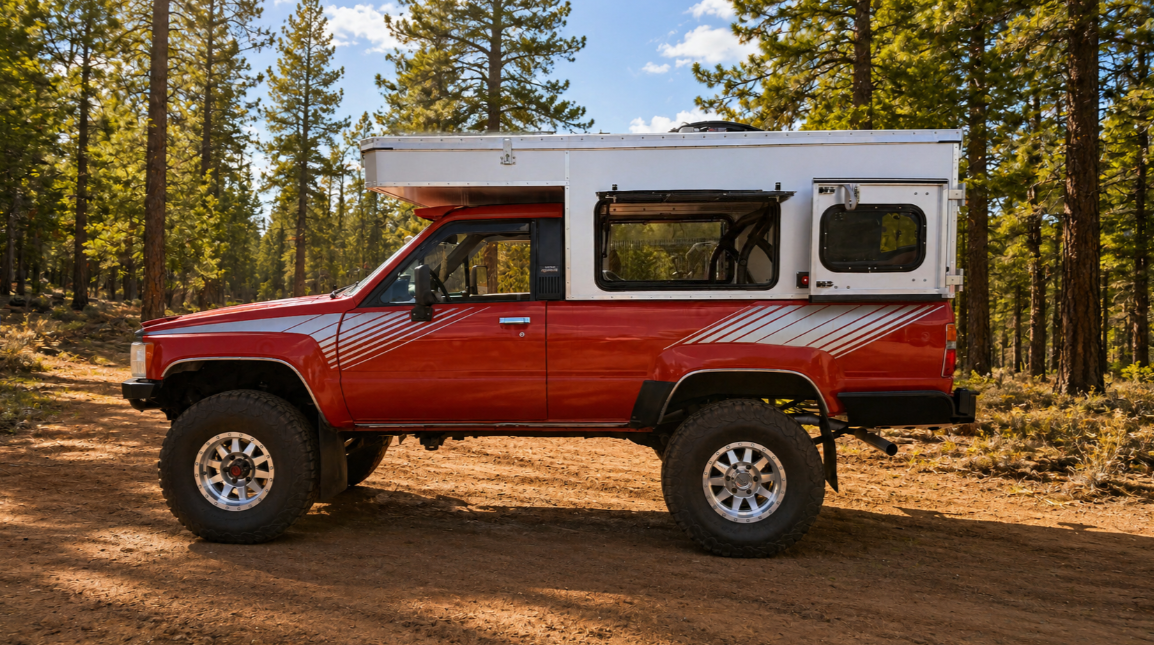

Custom built flatbed pop top camper for callssic truck.

True Custom Fit.

We are able to modify some dimensions per your request allowing clearance over racks, more standing room, or giving you more bedding storage room.

Flatbed campers, service body campers, and more are possible with our customizable design.

  • Barn Door Halves.

    Barn doors make it easy to get in and out of your camper.  They offer utility and easy access, and unlike a conventional flip up camper shell door, the 270 swing away barn doors allow you to stand on the tailgate before entering the camper.

  • Extra Bedding Height.

    Whats the point of getting a camper if it's only marginally better than a ground tent? We offer 8" and 10" cabover heights, which allow for 5" - 7" of stowed bedding when the camper is closed. Elimate the camp shuffle and leave your bedding up top!

  • Ultra Lightweight.

    This is the lightest pop top camper shell on the market! Midsize campers start at 265lbs and Fullsize at 300lbs.

  • Near Flapless Canvas.

    Unlike most truck camper manufacturers, we tension the canvas as we install it. This means you don't feel like you're sleeping in a ground tent when you set up camp on top of that windy mountain pass.

  • All Weather Canvas.

    Our Canvas is PVC coated polyester fabric. This stuff is waterproof and is what is used on rafts. How many "breathable" raincoats have you had that stayed waterproof? This stuff is robust, and will keep you dry when all hell breaks loose.

  • Self Folding Canvas.

    When you go to close the roof, the canvas comes in with it! This might seem silly, but imagine when you go to pack up camp and it's dumping rain... do you really want to go outside and hug your roof top tent or wedge camper canvas to pack it up?

  • Vertical Walls. Vertical Pop.

    Maximizing camper space is important. You're getting a ultra lightweight camper to make camping better. Will you be in the camper all the time? No, but when you are in it, you'll be pumped you don't have to crawl over your partner or rearrange anything to cook, change clothes, or hop out of bed for your midnight pit stop.

  • Wall On Frame Construction.

    Built like your house, our campers are all 1" wide tubing covered with side sheeting. What does this mean? Just like your house it's easy to insulate, easy to add counters, and easy to add walls, ultimately making it easier for you to customize your camper and make it exactly what you want it to be.

  • Repairability.

    Our campers are built using all readily available materials. If in 10 years something breaks and you're living the beach life in Baja, you won't need a 5 axis CNC mill to make some proprietary part for your camper that the camper company doesn't even make anymore... you'll have to run the local hardware store and make something work until we can get you the OEM part. We're not building rockets here, we're building reliable campers.

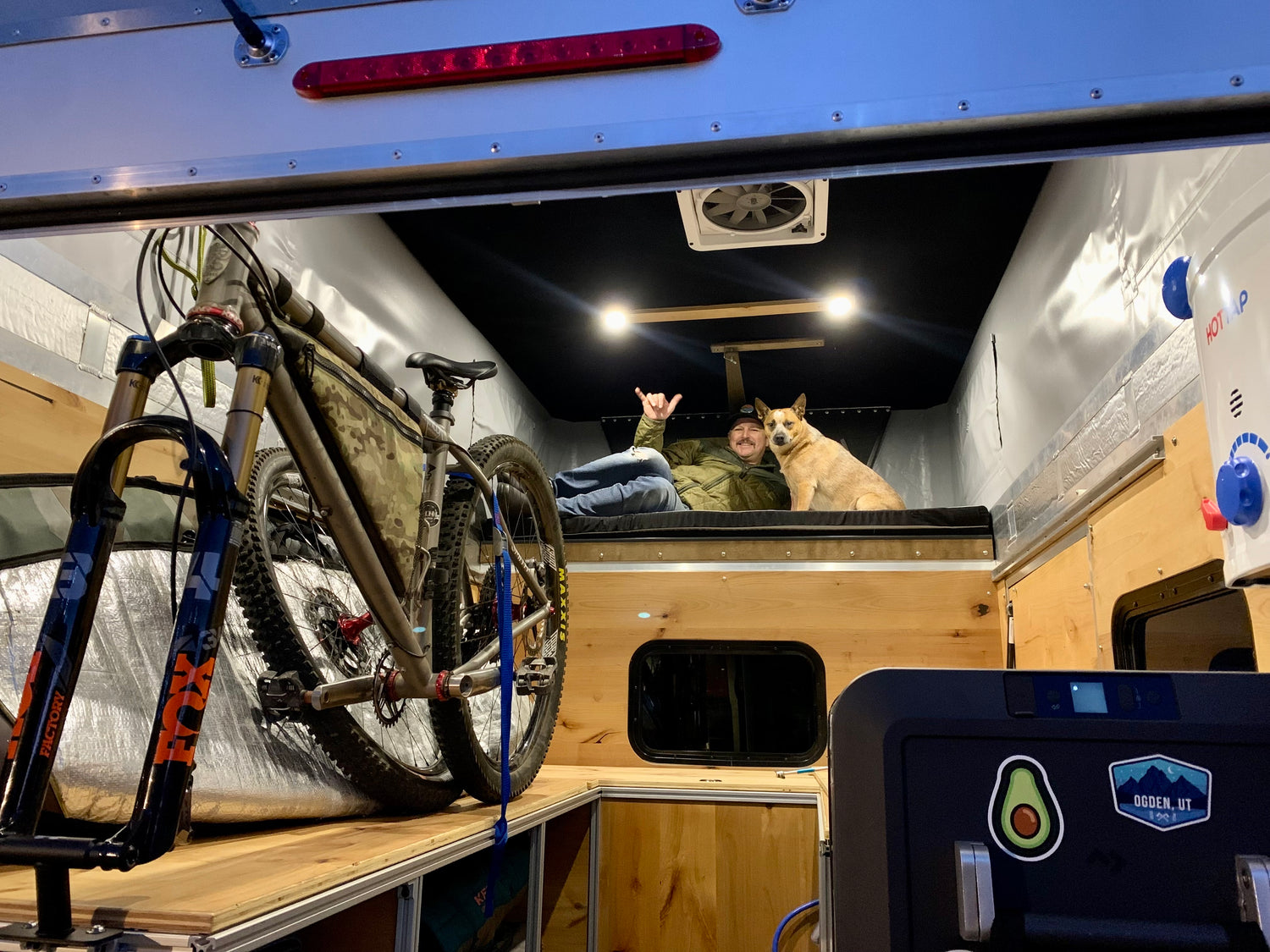

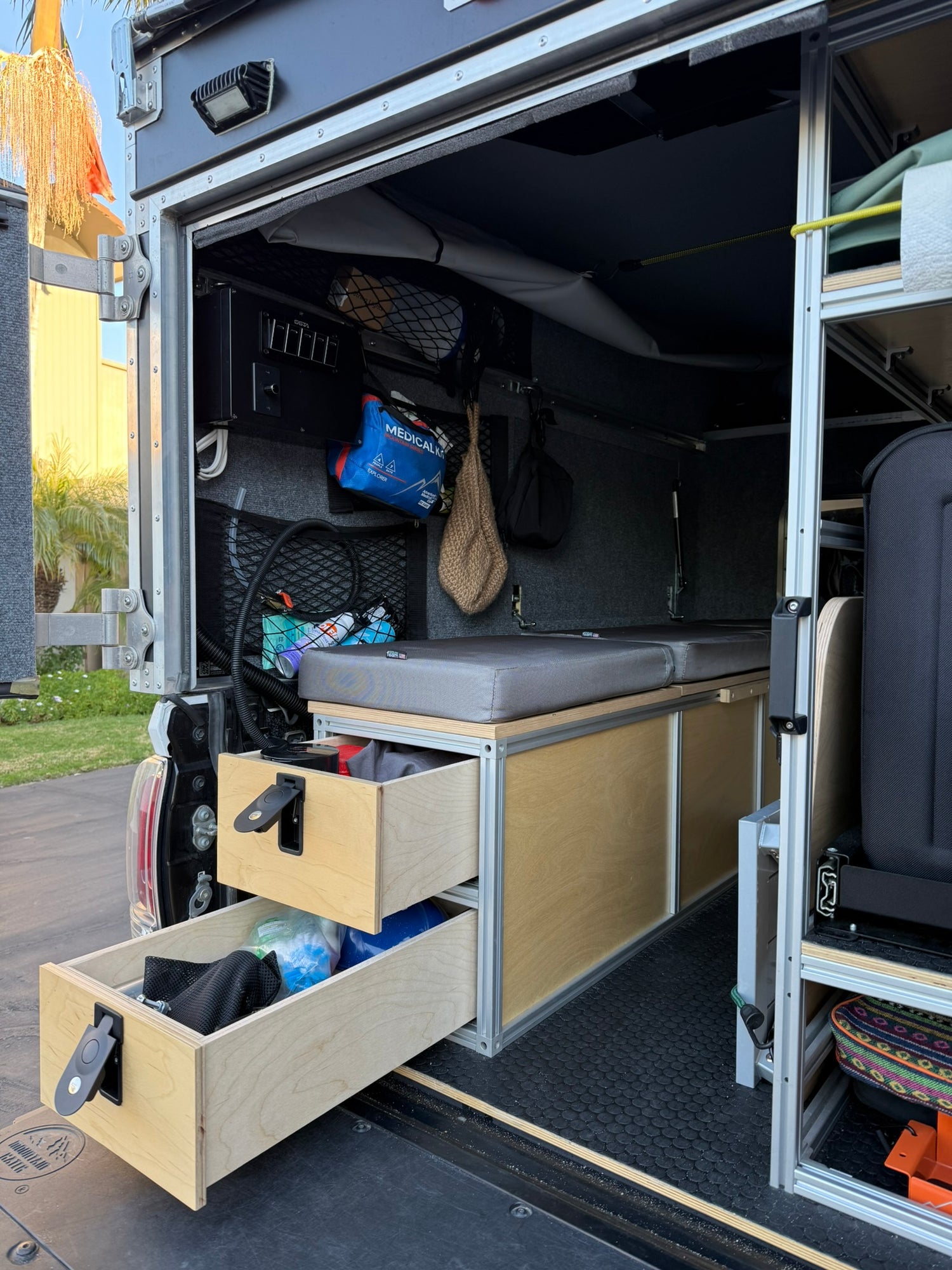

  • OVRLND Camper interior that customer has built out.

Specifications and Details.

Weight

Base estimated starting weights:

  • Midsize 5' bed - 265lb
  • Midsize 6' bed - 275lb
  • Fullsize 5.5' bed - 285lb
  • Fullsize 6.5' bed - 300lb
  • Fullsize 8' bed - 350lb

Truck Bed Dimensions

These are the general camper footprint dimensions as they sit on the truck bed side rails. These describe the main camper lower box dimensions per each class of truck.

Cabover lengths are always 41", so to get the total roof length just add 41" to any of the below lengths.

Midsize Trucks - Tacoma, Ranger, Frontier, Colorado, Canyon, Gladiator

  • Midsize 5' Short Bed: ~63" wide X ~62" Long
  • Midsize 6' Long Bed: ~63" wide X ~77" Long

Fullsize Trucks - F150, F250, F350, 1500, 2500, 3500, Tundra, Titan, Ram

  • Fullsize 5.5' Short Bed: ~70" wide x ~69" long
  • Fullsize 6.5' Standard Bed: - ~70" wide x ~80" long
  • Fullsize 8' long bed: ~70" wide x 99" long

Standing Height Dimensions

These are the general standing height dimensions per class of truck.

These are with the standard 8" cabover height. If you want extra bedding height, add 2" to the standing height.

Midsize Trucks - Tacoma, Ranger, Frontier, Colorado, Canyon, Gladiator

  • Midsize 5' Short Bed: ~6' 6"
  • Midsize 6' Long Bed: ~6' 6"

Fullsize Trucks - F150, F250, F350, 1500, 2500, 3500, Tundra, Titan, Ram

  • Fullsize 5.5' Short Bed: ~6' 10"
  • Fullsize 6.5' Standard Bed: - ~6' 10"
  • Fullsize 8' Long Bed" ~6' 10"

Sleeping Dimensions

These are the general sleeping platform dimensions for each class of truck.

Sitting height is always around 34" unless you add extra bedding height, which will make it 36". For someone that is ~6' tall 34" - 36" of sitting room is almost perfect for sitting straight up.

Midsize Trucks - Tacoma, Ranger, Frontier, Colorado, Canyon, Gladiator

Midsize 5' Short Bed:

  • Bed collapsed: ~61" wide x 40" long
  • Bed extended: ~61" wide x 80" long
  • Standing room behind bed with bed extended: ~61" wide x 22" long

Midsize 6' Long Bed: ~63" wide X ~77" Long

  • Bed collapsed: ~61" wide x 40" long
  • Bed extended: ~61" wide x 80" long
  • Standing room behind bed with bed extended: ~61" wide x 36" long

Fullsize Trucks - F150, F250, F350, 1500, 2500, 3500, Tundra, Titan, Ram

Fullsize 5.5' Short Bed:

  • Bed collapsed: ~68" wide x 40" long
  • Bed extended: ~68" wide x 80" long
  • Standing room behind bed with bed extended: ~61" wide x 27" long

Fullsize 6.5' Standard Bed:

  • Bed collapsed: ~68" wide x 40" long
  • Bed extended: ~68" wide x 80" long
  • Standing room behind bed with bed extended: ~61" wide x 40" long

Fullsize 8' long bed:

  • Bed collapsed: ~68" wide x 40" long
  • Bed extended: ~68" wide x 80" long
  • Standing room behind bed with bed extended: ~61" wide x 57" long

Bed Platform

  • Two (2) ultra-light honeycomb composite panels.
  • One panel is fixed over the cabover and the other panel slides back to create the full sleeping space.
  • Sleeping space is always Queens size or larger*

*Gen 1 Tacomas are 1" narrower than a queen size bed

Canvas Material

  • Gray PVC coated polyester fabric
  • Added Acrylic lacquer for easy clean up
  • 100% waterproof
  • Highly abrasion resistant
  • Easy repair with Tear-Aid or vinyl cement
  • UV protected

Canvas Windows

  • Each camper comes with four windows in the canvas.
  • Two on the passenger side and two on the drivers side
  • Heavy duty bug netting, and solid canvas privacy flap
  • Clear vinyl layer is optional
  • Zippers fail, so all flaps use Velcro™ around the perimeter for easy up and down and long term use

Aluminum Tubing

  • 1" deep aluminum tubing used throughout
  • 6xxx series aluminum
  • Tig welded frame construction

Aluminum Walls

  • 3xxx or 5xxx series aluminum skins
  • Available in raw, painted white or silver/black anodized
  • Taped, sealed and riveted to frame creating a no leak system

Aluminum Roof

  • 5xxx series aluminum roof
  • Sealed, taped, resealed, and screwed for years of worry free use
  • Convexed design for high strength and water shedding

Doors and Hatches

  • All doors are aluminum skin on tube framing
  • Taped, sealed and riveted panel design
  • Doors are very rigid and durable allowing things to be mounted to them
  • Each door includes two locking latches accessible from the outside.
  • Barn doors and rear hatch are locking from the inside. Side hatches optional.

Glass Windows

  • All windows added to the camper walls are automotive tempered glass
  • Sliding side windows have sliding and removable bug screens
  • All windows except for front facing windows are tinted
  • Arctic Tern windows are available on request

Roof Weight Capacities

  • Dynamic loading ~75lbs*
  • Static Snow Loading when popped and closed ~500lbs

*Customers certainly exceed this, by like, a lot. We just draw the line at a safe level where continuous loading won't harm the camper. At the end of the day it's your camper and you're going to put six kayaks on the roof, because why not?

Security

  • All doors and hatches on the camper come with locking compression latches

Standard Features

  • Camper topper custom made to fit your truck - The walls go straight up from side rails, making it easy to navigate tight trail.
  • Flip-up rear door
  • Full slide-out queen size bed (Larger for full size) - two 40" long x 60+" wide platforms
  • Composite bed - bed platform is honeycomb composite... super strong, super light, and insulated
  • Gray Canvas
  • Four windows in canvas with bug mesh
  • Interior extruded aluminum runners allowing easy installation of hooks and gear
  • All aluminum construction
  • Top of canvas loop (velcro) strip for hanging added insulation layer and headliner
  • 8" cab-over height - Height of cab-over portion (not including roof
    height). Does not reflect bedding height. Extra cab-over height can be
    added for added bedding room!
  • Free installation in Flagstaff, AZ!

Supported Trucks

Pretty much anything that is a truck, looks like a truck, drives like a truck, and has the bed of a truck.

We build for all generations and bed lengths of:

  • Toyota Tacoma
  • Toyota Tundra
  • Toyota Pickup
  • Toyota T-100
  • Ford F150
  • Ford F250/350
  • Ford F100
  • Ford Ranger
  • Mazda B-Series
  • Chevy Silverado
  • Chevy 2500/3500
  • Chevy Colorado
  • GMC Sierra
  • GMC 2500/3500
  • GMC Canyon
  • Dodge RAM 1500
  • Dodge RAM 2500/3500
  • Dodge Dakota
  • Nissan Frontier
  • Nissan Titan
  • Jeep Gladiator

And damn near anything else with a 5'+ bed!

The being said, we will NOT build for the following:

  • Rivian R1T
  • Ford Maverick
  • Honda Ridgeline (Gen 1 or 2)
  • Hyundai Santa Cruz
  • Ford Explorer Sport Trac
  • Subaru Baja/Brat - no matter how cool this would be
  • Tesla Cybertruck
  • OBS Ford Bronco
  • OBS Chevy Blazer

Camper Installation

All campers can be installed free of charge in Flagstaff, AZ.

We also offer delivery. See our F.A.Q. for more info.

Hand Crafted in Flagstaff, AZ

Every Camper is hand built in Flagstaff, Arizona.

Do we have our camper parts made overseas and then assemble them here? Nope.

Anything we can build in our 8000 sqft shop, we do. The campers, the doors, the lifting mechanisms, the sewn canvas tent. Everything.

Any items we can't make in house, we aim to support North American companies. Our composites, glass windows, canvas material, lift struts, and raw aluminum are all manufactured in North America.

Our Mission.

As the first builders of pop-top camper shells, OVRLND's goal has been and will always be to build the lightest, most spacious, highly usable, and versatile camper toppers on the market. We achieve this by employing craftspeople with a high level of pride in small details.  By constructing the camper from A-Z at our shop you can be sure we are delivering your new camper exactly how you want it.
